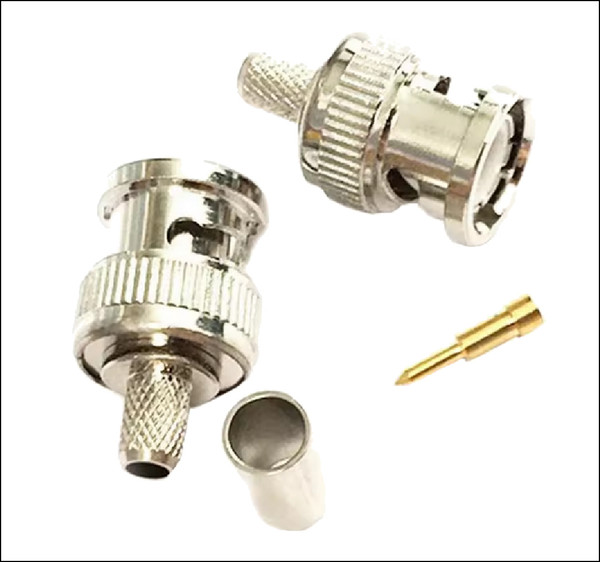

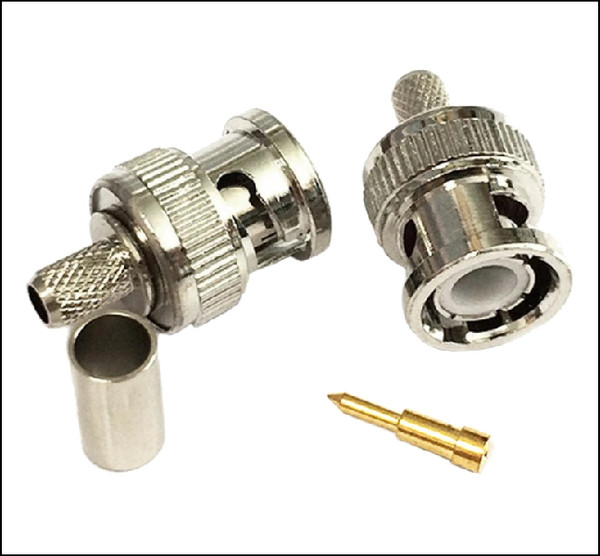

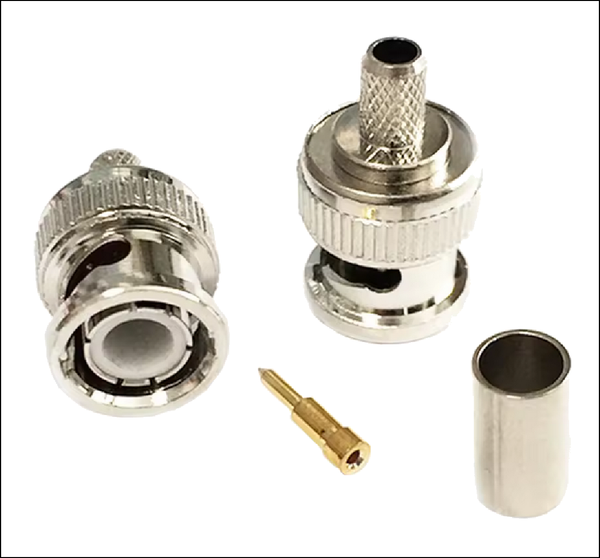

24 PCS BNC MALE STRAIGHT RF CABLE CONNECTOR PLUG RG58 LMR195 CRIMP NICKEL PLATED 50 OHM

Write a Review
$45.00
Part Number(s):
PP0649 SCBGEN721189 C-BNC1-195 546-4853
Condition:
New
Shipping:
Free Shipping

24 PCS BNC MALE STRAIGHT RF CABLE CONNECTOR PLUG RG58 LMR195 CRIMP NICKEL PLATED 50 OHM

$45.00

24 PCS BNC MALE STRAIGHT RF CABLE CONNECTOR PLUG RG58 CRIMP NICKEL PLATED FOR LMR195 50 OHM

** FREE NZ SHIPPING NON-RURAL **

Surplus to requirements

** MUCH BETTER QUALITY THAN JAYCAR WOULD SELL YOU FOR $3.50 EACH PLUS DELIVERY **

Price is for the entire lot of 24 pcs

BNC are widely used in connection with RF coaxial cables in CCTV computers wireless networks medical equipment and electronic instruments



Major Technical Characteristics

MATERIAL & PLATING

Temperature Range:

-55~+155°C(PE Cable -40~+85°C)

Impedance:

50Ω

Body

brass

Nickel plated

Frequency Range:

DC~4GHz

Working Voltage:

500V r.m.s at sea level

Resilient contact

Tin bronze

Gold or silver plated

Withstanding Voltage:

1500V r.m.s at sea level

Contact resistance:

a)Center Contact   ≤1.5m Ω

b)Outer Contact ≤1m Ω

Pin contact

brass

Gold or silver plated

Insulation resistance:

≥5000MΩ

Socket contact

Beryllium-copper

Gold or silver plated

Center Conductor retention force:

≥0.57N

insulator

PTFE



Insertion Loss

≤0.20dB/3GHz

Crimp ferrule

Copper alloy

Nickel plated

Voltage Standing Wave Ratio:

Straight  ≤1.22/ 3GHz

Right angle ≤1.30/3GHz

O-ring sealing

6146 silicone rubber



Durability(mating):

≥500times(cycles)

Applicable Standard:

MIL-C-39012

CECC 22120

IEC-60169-8



** THANKS FOR LOOKING **
