AUDI A4 B7 A6 C6 FWD GETRAG 6-SPEED 01X MANUAL GEARBOX TDI 2.0L 2008 HCK JWR 30/8 FINAL DRIVE GT40 PROJECT

Write a Review
$1,950.00
Part Number(s):
HCK JWR 01X 01X300044K 01X300044KX 01X300044N
Condition:
Used
Shipping:
Calculated at Checkout

AUDI A4 B7 A6 C6 FWD GETRAG 6-SPEED 01X MANUAL GEARBOX TDI 2.0L 2008 HCK JWR 30/8 FINAL DRIVE GT40 PROJECT

$1,950.00

AUDI A4 B7 6-SPEED GETRAG 01X FWD MANUAL GEARBOX 2007 HCK JWR 30/8 FINAL DRIVE SUITS GT40 PROJECT

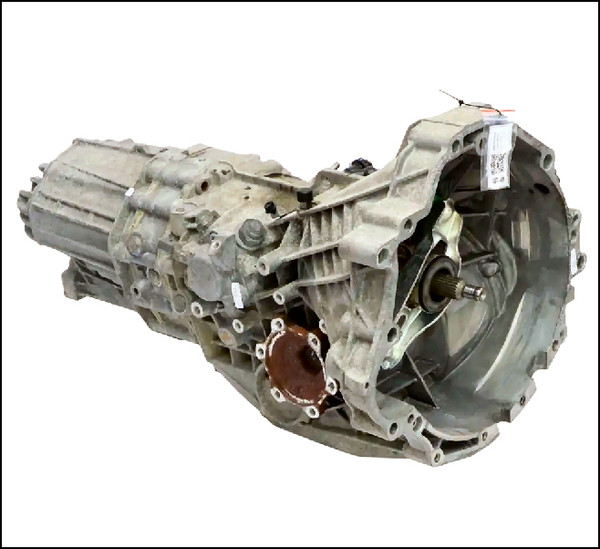

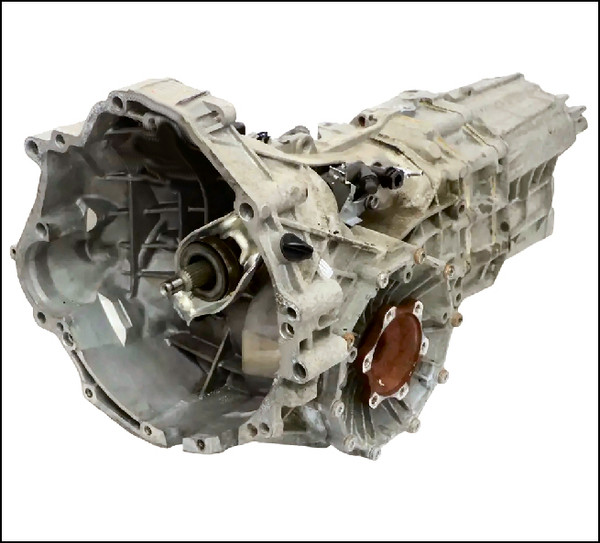

This gearbox was carefully removed from a 2007 UK-Import Audi A4 Quattro with 2.0L TDI Diesel engine

Part number: HCK 01X300044K or 01X 300 044 K
supercedes to: JWR 01X300044N 01X300044KX 01X300044NX

** IDEAL FOR A GT40 PROJECT - PLENTY OF DISCUSSION AT THE FOLLOWING FORUM LINK **

https://www.gt40s.com/threads/audi-01x-transmission.24696/page-2

"The 01X is a close relative to the Boxster 6 Speed transaxle (Boxster S). A slightly different bell housing pattern than the typical 016/012. Larger gear width to hold more torque. Some say capable of 400hp"

"The 01X is Audi's newer transmission replacing the 01E. It's an all aluminium design and rated by Getrag at 450NM max torque"

Ratios are as follows:

Final drive: 30:8 = 3.750
1st gear: 33:9 = 3.667
2nd gear: 39:19 = 2.053
3rd gear: 36:28 = 1.286
4th gear: 31:33 = 0.939
5th gear: 26:37 = 0.703
6th gear: 23.40 = 0.575
Reverse: 34:10 = 3.400

Please enquire for a shipping cost

** THANKS FOR LOOKING **
