AUDI A4 B8 8K FRONT COBAPRESS HUB SPINDLE WHEEL HOUSING WITH BEARING LEFT LH PASSENGER SIDE 2008 - 2009

** FREE NZ SHIPPING NON-RURAL **

This is a genuine Audi part in good clean used condition

Removed from an Audi A4 or S4 S4 B8 quattro manufactured 2008 or 2009

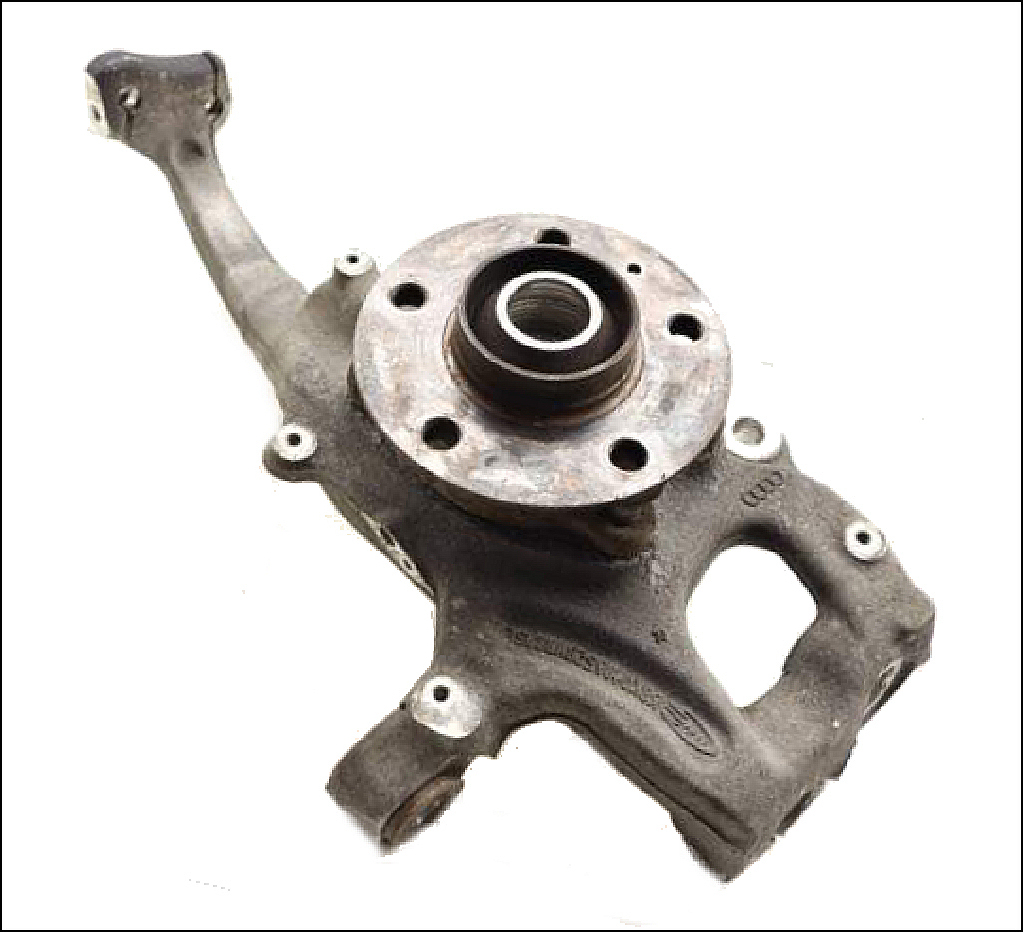

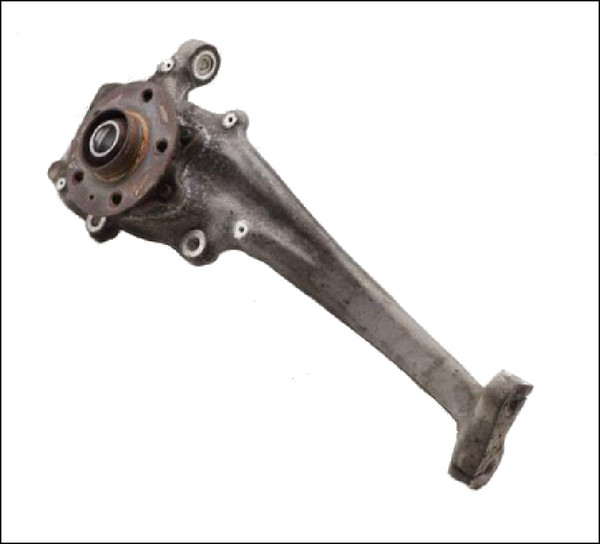

** SALE INCLUDES UPRIGHT KNUCKLE WHEEL-BEARING AND HUB **

Part numbers:

Upright knuckle: 8K0407253G or 8K0 407 253 G supercedes to 8K0407253R
Hub and bearing: 4H0498625 includes 8K0407607 8K0407613B

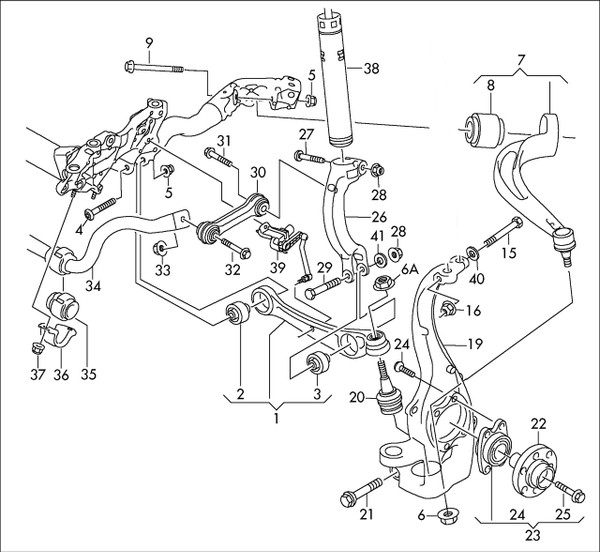

reference #19 & #23 in the parts catalogue illustration

There was a change of part number in December 2009. This change coincides with a modification to the steering rack tie-rod ends and associated ball joints. The amount of thread on the tierods increased from 17mm to 29mm and the balljoint shaft diameter increased from 12mm to 14mm at these vin numbers:

F >> 8K-9A170 000*
F >> 8K-9N051 000*
F >> 8K-9Y000 100*

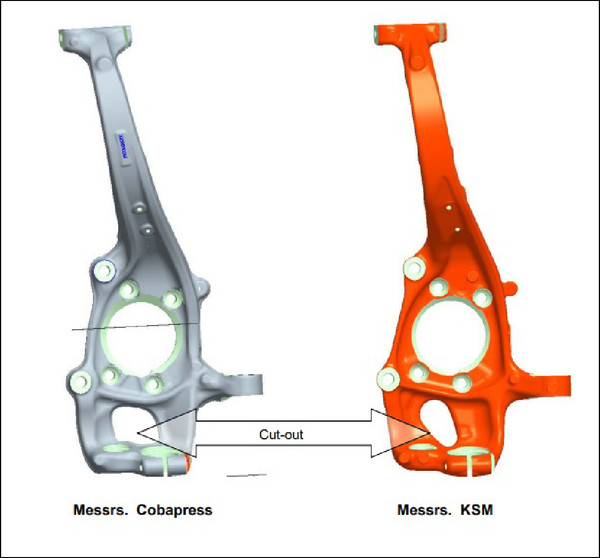

** THIS EARLIER VERSION OF THE HUB IS KNOWN AS A COBAPRESS TYPE **

Pay no attention to any part number that may be cast into the knuckle - that is an internal production number and relates to the bare casting only. It is NOT the catalogued Audi part number

You will need to conduct your own research if you intend to use the parts being sold here on a car built possibly later than those vins. The following information comes from one of the B8 owners' forums:

"If you lift the corner and look at the nut on the bottom for the lower curved's ball joint, it'll be either a 12mm or 14mm hole/bolt. Additionally, it'll either be a single piece collar nut or look like a two-piece flange nut with integrated thick washer. The latter is used after the Nov 2 '09 change. (if it's the old 18mm socket two piece nut, then there's no question as you're dealing with a pre Nov '08 vehicle. In order to confirm the m12 vs m14 ball joint width pull the bottom nut off the back control arm and measure it with a metric rule. not exactly calipers, but you can discern the difference between m12 and m14 based on the opening in the silver sleeve (not the threaded end of the ball joint"

The attached Youtube video LINK shows the later type of balljoint nut, after Dec 2009

** THANKS FOR LOOKING **

( keywords: knuckle spindle strut )
