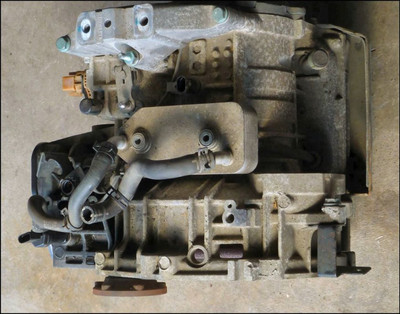

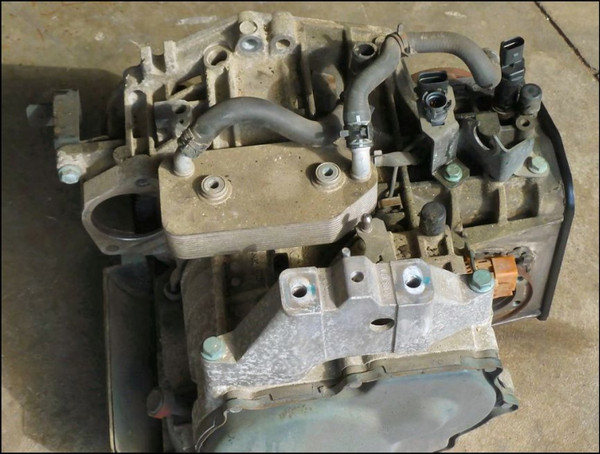

VW VOLKSWAGEN GOLF BORA MK4 BEETLE 01M AUTOMATIC TRANSMISSION GEARBOX 2001 FDG 85,000KM

$825.00

Part Number(s):: FDG
Condition:: Used
Shipping:: Calculated at Checkout

VW VOLKSWAGEN GOLF BORA MK4 BEETLE 01M AUTOMATIC TRANSMISSION GEARBOX 2001 FDG 85,000KM

$825.00

Description
Shipping & Returns

Description

VW GOLF MK4 BORA BEETLE 2.0L AUTOMATIC TRANSMISSION GEARBOX 01M 2002 FDG 85,000 KM

** REMOVED FROM A COLLISION DAMAGED VOLKSWAGEN BORA WITH 2.0L APK ENGINE CODE **

Click this link to verify odometer: Carjam NZ Data ERP191

Includes torque converter which has been locked in place since removal from vehicle

Donor car was rear-ended but still driving and so was used for some weeks as a runaround car in our yard. No issues evident with this transmission at all. There was no collision damage in the area of engine or gearbox

We would be willing to deliver for free in the Christchurch Metro area but if you require delivery elsewhere in NZ then we will need to provide a shipping quote. In either case please get in touch first to discuss, by email or in Live Chat

Specifications:

1st gear: 2.714
2nd gear: 1.441
3rd gear: 1.000
4th gear: 0.742
Reverse gear: 2.884

Intermediate drive/no. of teeth:
Input gear: 45
Output gear: 44
Ratio: 0.978

Final drive/no. of teeth:
Pinion shaft: 15
Crown wheel: 68
Ratio: 4.533

There are a number of identical 01M series VW transmissions which are direct swaps for this "FDG" version. If you have a 2.0L APK engine in your Beetle Golf or Bora, but which has a different transmission identification code this may still be a direct substitute. Please get in touch in Live Chat or by email and we will try to advise

** Thanks for looking - happy to answer any sensible questions, but "Google is your friend" on any detailed technical matters **

( trans gearbox four wheel drive fwd 2000 2001 2002 2003 2004 00 01 02 03 04 )
