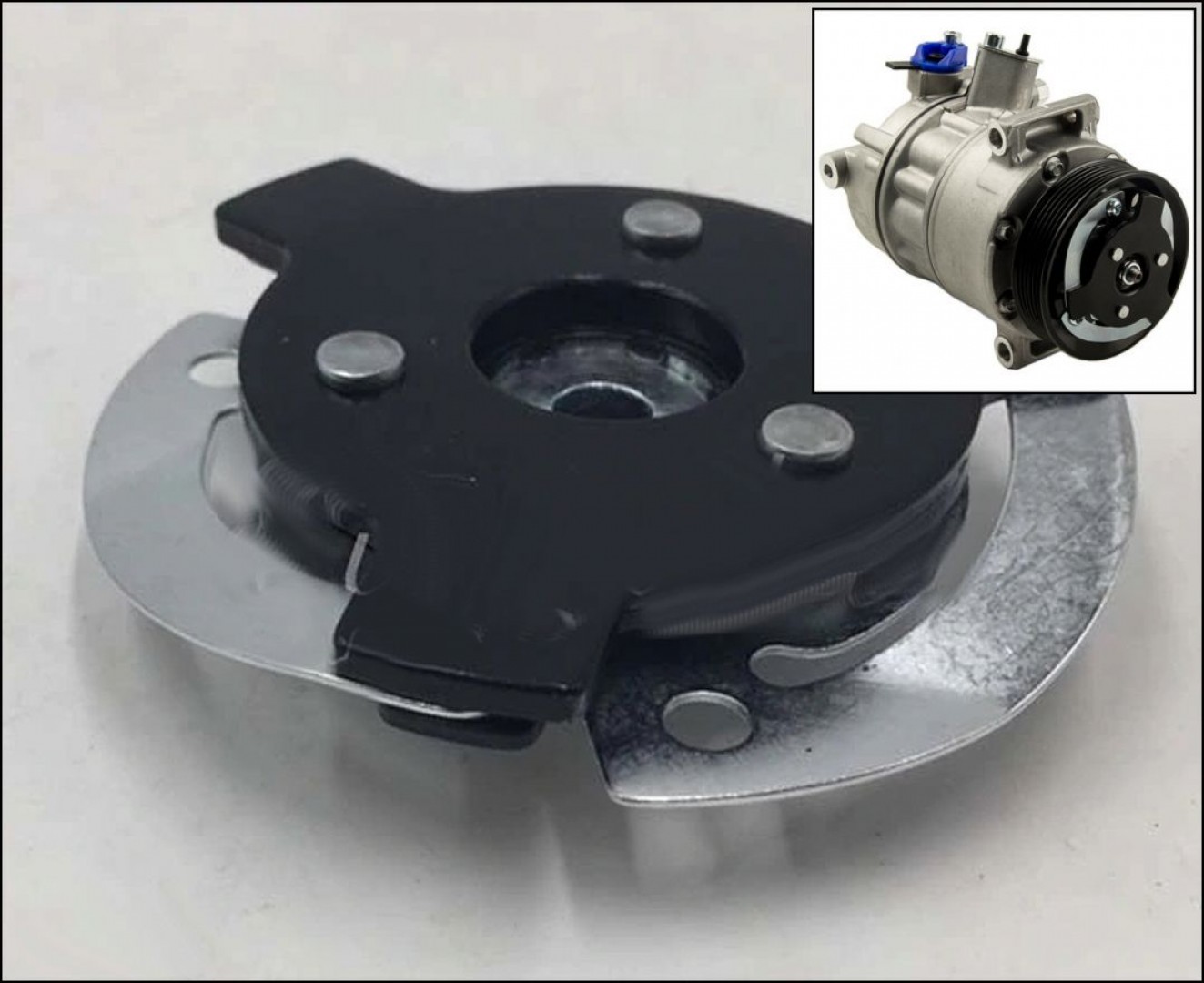

VW VOLKSWAGEN AUDI SKODA SEAT AIR-CONDITIONING CLUTCH SHEAR PLATE REPAIR KIT FOR MODELS WITH SANDEN COMPRESSORS 1K0820859F
Have you been told you need a new compressor for a 4-figure price? The NZ companies who repair and import parts for aircon do not keep this part and have no interest in stocking it - why would they, when they can make $1000 or more out of telling you that your Climate Control compressor is unrepairable, and selling you a complete new one, along with all of the labour costs in replacing and then re-gassing the system
** COMPRESSORS ON THESE MODELS CAN BE ONE OF 3 TYPES - SANDEN ZEXEL / DENSO OR DELPHI - THIS PART SUITS MODELS WITH SANDEN ONLY **
This kit will repair compressors typically with the following part number: 1K0820859F
** FREE NZ SHIPPING NON-RURAL **
Many failures of the Sanden compressors fitted to Volkswagen Audi Seat and Skoda fitted from approximately 2005 on are due to nothing more than a failure of this simple shear-plate clutch on the drive pulley , which can in fact be replaced in place, and without even taking off the drive belt or losing the refrigerant gas
This won't fix every failure, but if the compressor has not seized then it is certainly worth checking this clutch before having your wallet lightened. The splines in the middle of the clutch often wear out because the centre nut comes loose (no thread-lock at the factory) or else the spring-steel tongues fracture from old age
** BRAND-NEW AFTERMARKET PART - NOT AVAILABLE AS GENUINE **
I have not yet used enough of these replacement parts to decide if they are at least as reliable as the genuine part originally fitted to your car, but it would hard for them to be much worse!
** CHECK OUT THE VIDEO AND SEE HOW EASY IT IS TO CARRY OUT THIS REPAIR **
(video shows replacement of the clutch on a Delphi brand compressor but the procedure on Sanden type is very similar)
Found on the following models: Audi A3 Q3 from 2004 VW Golf Mk5 Mk6 Mk7 Passat Tiguan Touran Skoda Octavia Fabia Seat

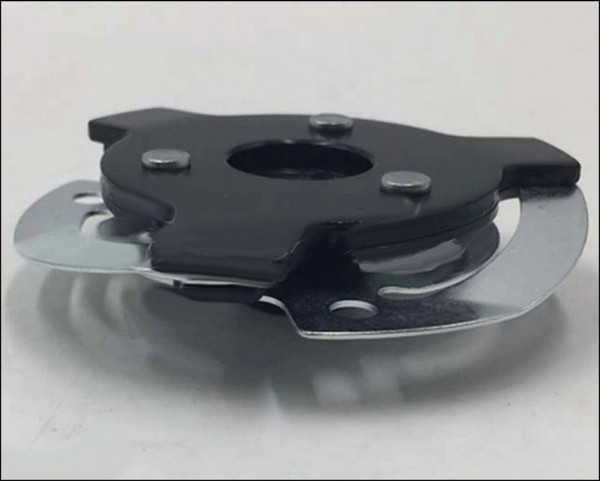

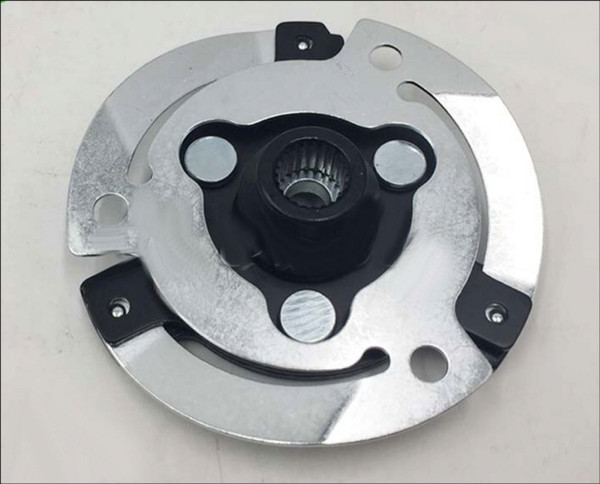

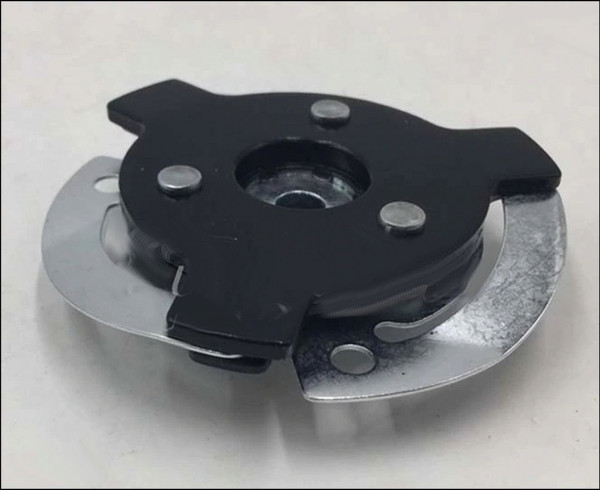

Please be sure that this is the correct part for your needs, as there are no refunds if you get it wrong. The part is 91mm in diameter and must look exactly the same as my photos

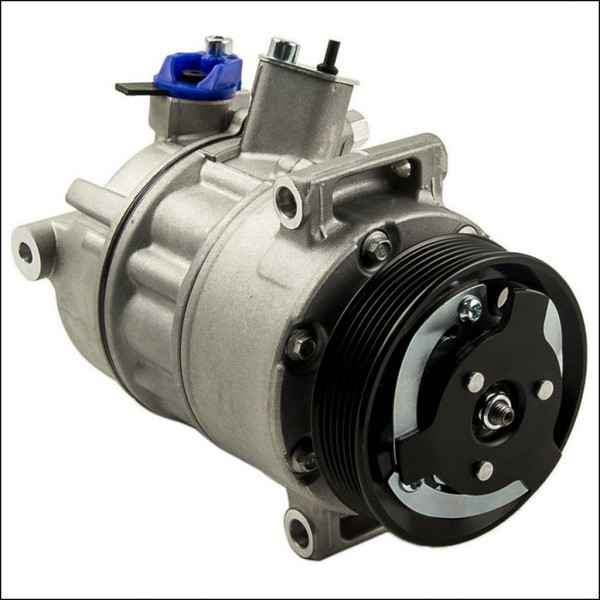

Note: Any images showing a complete compressor are for reference purpose only
** THANKS FOR LOOKING **
PLEASE READ OUR STORE POLICIES BELOW - IF ANYTHING IS STILL NOT CLEAR THEN WE WILL ANSWER QUESTIONS BY EMAIL OR LIVE CHAT AS PROMPTLY AS POSSIBLE. THANK YOU FOR VISITING OUR STORE
Please take utmost care to be sure that the part you are buying is correct for your vehicle. We would rather help by answering your questions than have you buy a part that does not fit correctly
There are no refunds or returns for parts ordered incorrectly, or in the case of "buyer's remorse". All used parts are security marked prior to despatch and photo records are also retained
If despite our very best efforts you believe that a part we have sold you is defective or does not match description then please do not hesitate to get in touch by email or in Live Chat and we will set things right
We can ship to virtually any address in New Zealand
As much as possible and practicable our prices usually include "free shipping". This avoids any surprises at checkout and makes the entire process simpler and much more clear for our valued customers
A surcharge may be applied at checkout to shipments to Rural "R.D." addresses, unless the listing specifically states otherwise. Please be sure to provide your correct postal code number, as we will check to be sure that you are not attempting to escape the R.D. delivery surcharge that is applied by NZ-Post. When an R.D. charge applies it will show in the checkout window as "Handling"
As a general rule this store is for New Zealand buyers only, and WE DO NOT SHIP INTERNATIONALLY ... for some small high-value items we might make an exception to this rule. Please enquire and if at all possible we will try to help
VW VOLKSWAGEN AUDI SKODA SEAT AIR-CONDITIONING COMPRESSOR SANDEN PXE16 USED GENUINE OE OEM TESTED Carefully removed from a 2008 Golf Mk5 Variant with 2.0L TFSI engine and light frontal collision...
VW VOLKSWAGEN AUDI SKODA SEAT AIR-CONDITIONING CLUTCH SHEAR PLATE REPAIR KIT FOR MODELS WITH SOME DELPHI COMPRESSORS Have you been told you need a new compressor for a 4-figure price? The NZ...
VW VOLKSWAGEN AUDI SKODA AIRCON CLUTCH SHEAR PLATE REPAIR KIT FOR DELPHI DH5 SERIES COMPRESSORS Have you been told you need a new compressor for a 4-figure price? The NZ companies who repair and...
VW VOLKSWAGEN AUDI SKODA AIRCON COMPRESSOR 1.2L TSI OE OEM USED GENUINE TESTED 2014 - 2018 Carefully removed from a 2016 Skoda Fabia TFSI with 1.2L Turbo TSI engine and light collision damage...

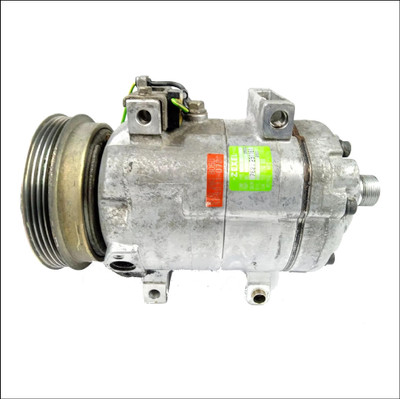

VW VOLKSWAGEN AUDI SKODA B5 B5.5 A4 PASSAT OCTAVIA 4-CYL 1.8L AIRCON COMPRESSOR ZEXEL USED OE GENUINE Carefully removed from a 2000 VW Passat with 1.8L 1.8T Turbo engine and light frontal collision...
