DSG DQ250 TRANSMISSION LQT AUDI A3 VW GOLF PASSAT TOURAN SCIROCCO TDI DIESEL 122,000KM

Write a Review
$1,750.00
Part Number(s):
LQT 02E300051T 02E300051TX
Condition:
Used
Shipping:
Calculated at Checkout

DSG DQ250 TRANSMISSION LQT AUDI A3 VW GOLF PASSAT TOURAN SCIROCCO TDI DIESEL 122,000KM

$1,750.00

DSG DQ250 TRANSMISSION LQT AUDI A3 VW GOLF PASSAT TOURAN SCIROCCO TDI DIESEL 122,000KM

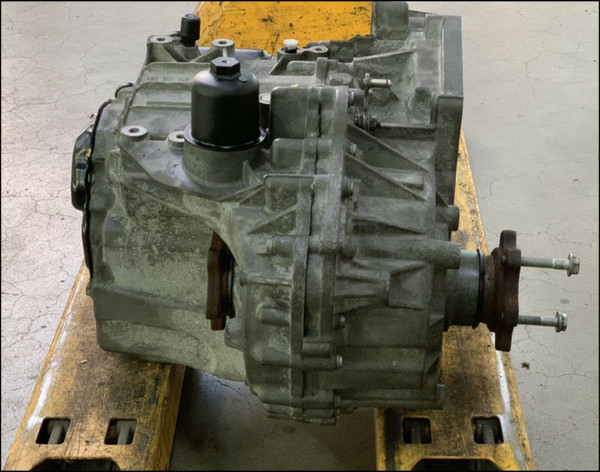

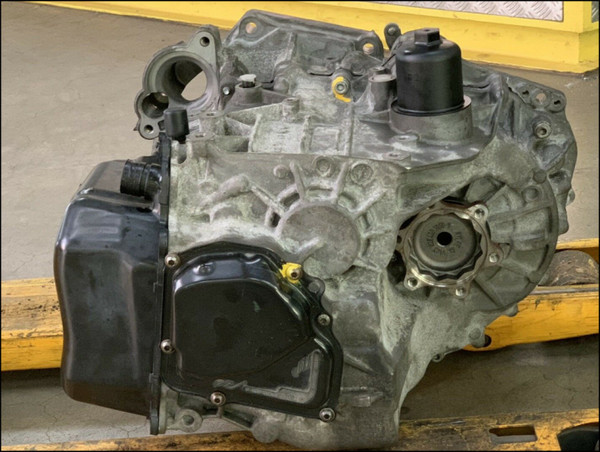

This gearbox was carefully removed from a 2010 NZ-new Passat with 2.0L TDI engine and with good service history. Kms may be confirmed by searching rego number FFS42

It appears to be a suitable swap for almost any TDI 2.0L DSG gearbox from 2004 - 2011

Ratios are as follows. If you are not sure about compatibility with your car then please ask a question in Live Chat or by email, supplying your existing transmission identification code, and I will do my best to help

Part number: 02E300051T or 02E300051TX

Final drive #1 1st to 4th gear: 70:17 = 4.118
Final drive #2 5th to 6th gear: 70:23 = 3.043

1st gear: 45:13 = 3.461
2nd gear: 41:20 = 2.050
3rd gear: 39:30 = 1.300
4th gear: 37:41 = 0.902
5th gear: 32:35 = 0.914
6th gear: 31:41 = 0.756
Rev. gear: 22:14 x 33:13 = 3.990

** SHIPPING OR COLLECTION BY ARRANGEMENT **

** THANKS FOR LOOKING **
